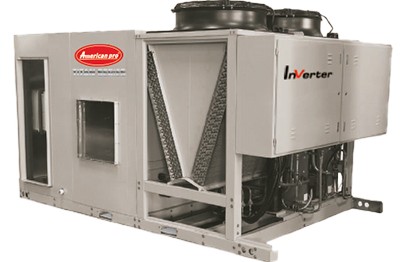

American pro® TITAN Inverter Rooftop Packaged Unit

American pro® TITAN Inverter Rooftop Packaged Unit

AP.BDQTH015AH

,

AP.BDQTH025AH

,

AP.BDQTH035AH

,

AP.BDQTH045AH

,

AP.BDQTH055AH

,

AP.BDQTH080AH

,

AP.BDQTH015AYQH

,

AP.BDQTH025AYQH

,

AP.BDQTH035AYQH

,

AP.BDQTH045AYQH

,

AP.BDQTH055AYQH

,

AP.BDQTH080AYQH

The AP.BDQTH series are specially design and manufactured to makes American pro® inverter rooftop package unit to perform at the highest efficiency possible and operate in a wide ambient temperature range between 66°F [18.9°C] to 118°F [46.0°C] it is built specifically for outdoor installation. This series is using R410A refrigerant with cooling capacity range of 169 to 921 MBH [50 to 270 kW] and heating capacity range of 180 to 962 MBH [53 to 282 kW). The units are rated in accordance with AHRI standards 210/240 and 340/360. The AP.BDQTH series with new features is suitable for hotel, office, hospital, school, factory and supermarket applications where the heat load variation is inconsistent most of the time. The low noise and compact series are completely leak tested, evacuated, dehydrated and charged with refrigerant prior to shipment. All that is required on site is connecting the ducting and power supply. This greatly reduces installation work and costs.

The American pro® AP.BDQTH series are specially design and manufactured to makes Dunham-Bush inverter rooftop package unit to perform at the highest efficiency possible and operate in a wide ambient temperature range between 66°F [18.9°C] to 115°F [46.0°C] it is built specifically for outdoor installation. This series is using R410A refrigerant with cooling capacity range of 169 to 921 MBH [50 to 270 kW] and heating capacity range of 180 to 962 MBH [53 to 282 kW). The units are rated in accordance with AHRI standards 210/240 and 340/360.



The AP.BDQTH series with new features is suitable for hotel, office, hospital, school, factory and supermarket applications where the heat load variation is inconsistent most of the time. The low noise and compact series are completely leak tested, evacuated, dehydrated and charged with refrigerant prior to shipment. All that is required on site is connecting the ducting and power supply. This greatly reduces installation work and costs.
