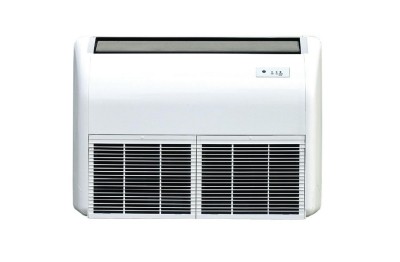

Floor and Ceiling FCU UD Series

Floor and Ceiling FCU UD Series


















American Pro® Ceiling & Floor type Fan Coil Unit offers a wide capacity range from 200CFM to 1400CFM with three different speeds (low, medium, high). 220-240V/1Ph/50Hz power supply is standard; 208-230V/1Ph/60Hz can be customized for floor-standing type. Flexible for installation, designed for horizontal/vertical, concealed/cabinet application. Ultra-thin body, streamlined appearance. Air return from the side or below for increased choice flexibility. 3-way electromagnetic valve can be built inside. Movable louver makes wide angle air flow. Pipe connection from left or right can be selected (in factory).

Superior Product Quality

All fan coil units are manufactured in a ISO9001:2000 and ISO14000:2004 Certified manufacturing facility whereby highest products quality is always top priority.

The products' quality standard has been recognized through successfully obtaining the CE marking certification which in turn comply with the stringent EU requirements.


High Efficiency Heat Exchanger

High quality copper pipes with slit profile aluminum fins are being transformed into high efficiency heat exchanger through advance design, manufacturing equipment and processes.


Low Noise

Through straight static and dynamic balancing tests of motors, coupled with high quality thermal and acoustic insulation in the unit.

Superb low noise performance is achieved.


leakages Protected

One-piece molded drain with integral thermal insulation and professional welding skill enable all condensate water to be collected and prevent condensation at the outside of the drain pan.


High Efficiency DC Motor

High efficiency, average consumed power is 50% of common motor leading low operation cost of air conditioner. Avoiding noise from carbon brushes. It is much silent when operating under medium speed.


Multiple ESP Options

Standard fan coil units come with low ESP(12Pa) and high ESP(30Pa,50Pa),options to suit different applications .In addition, 80Pa fan coil units are available as non-standard options. High air volume FCU comes with standard ESP and high ESP options to add to the product line up.


Slim and Compact Design

Light and rigid construction due to the compact and strong structural design of the unit. Slim unit design also fulfills the stringent space requirement of today building design.

High air volume FCU with the height of only 430mm is most suitable for applications that demand for high air flow but space saving in mind.


Easy Maintenance

The fan coil unit are equipped with high quality electric motor with low noise bearing that do not require lubrication and thus minimum maintenance effort required.

Blowers and also motors can be dismantled individually if cleaning off heat exchanger is needed.

High efficiency filter provides better filtration than normal filter with longer operational life and easy to clean.




Wiring Diagram:
