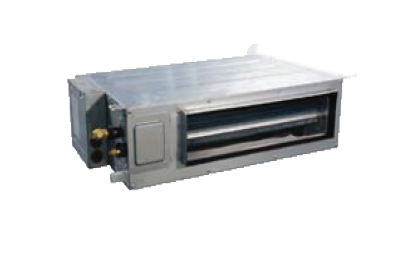

VRF Slim Ducted Type 50/60Hz

VRF Slim Ducted Type 50/60Hz

AP.UEZ022BD

,

AP.UEZ025BD

,

AP.UEZ028BD

,

AP.UEZ032BD

,

AP.UEZ036BD

,

AP.UEZ040BD AP.UEZ045BD

,

AP.UEZ050BD

,

AP.UEZ056BD

,

AP.UEZ063BD

,

AP.UEZ071BD

Ultra-thin unit body, can be hidden easily.The series of air duct units have a compact structure and elegant appearance. The body is only 200 mm thick, not only increasing the utilization rate of house space and ceiling height, but also improving comfort. The small depth of 450 mm applies to the bedroom of smaller depth.

Left/right drainage and less pipe bends
The user can freely choose left/right drainage according to site conditions. The drainage pipeline system is simple with less bends for smooth drainage.

Free air return, adjustable on the field
The unique “high strength and low noise” design is adopted for the fan mounting plate, and the two flexible engineering installation methods of bottom return air and back return air can be implemented to meet different ceiling conditions and user requirements.

Multiple static pressures, not restricting installation
The default static pressure of the unit is 10 Pa, and the air outlet panel or short-distance air duct can be directly connected. The 30 Pa static pressure can be adjusted on the field, and the return air purifier or longer-distance air duct can be selected. Various static pressures can meet the requirements of different sites.

Condensate pump, ensuring smooth drainage
1100 mm condensate lifting pump can be selected, making drainage pipe arrangement extremely convenient.

Cooling capacity range:

Ultimate: Cooling capacity: 870 ~ 2380 W

Heating capacity: 860 ~ 2200 W

Compact design,only 200mm height

Low noise,minimum 23dB(A)

Built-in drain pump,drain height can be 1200mm

Built-in with long life drainage pump,Pumping head is 1200mm, flexible for drainage pipe design.

Left and right drain pipe options

Flexible air return

Cooling capacity range:

Ultimate: Cooling Capacity:   2.2~7kW

               Heatling Capacity:   2.5~8kW

Resources

Specification:

Download

Wiring Diagram:

Download

Catalog:

Download

Manual:

Download
